Turning, milling and grinding
Prototypes through small production runs. The numbers below are machine limits. A part's geometry, workholding and process decide whether it fits, so send the drawing and we'll tell you.
CNC turning
Turned components for prototypes and production. Multi-function turning with live tooling and Y-axis handles parts that need milled features without a second setup.

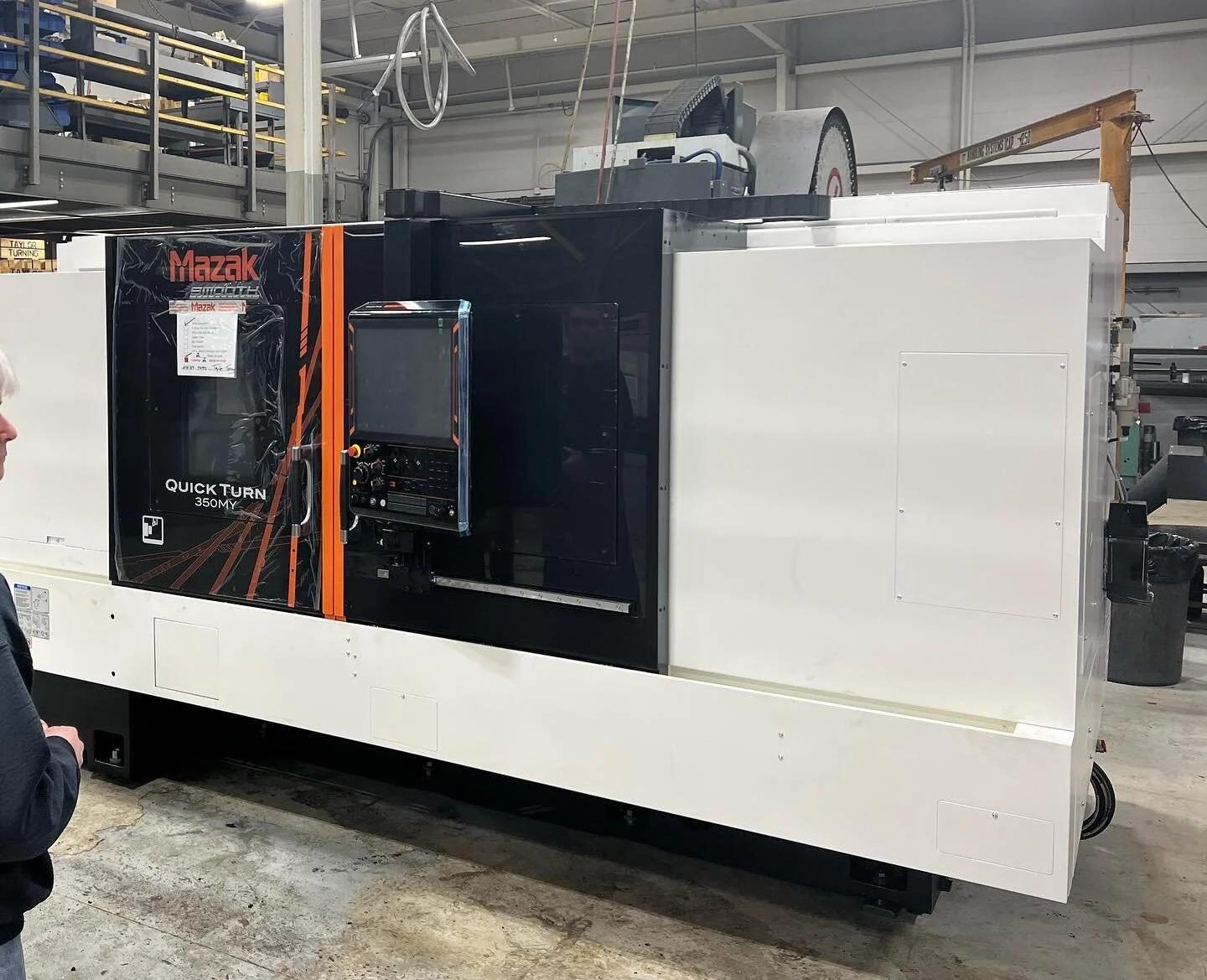

Our Mazak Quick Turn 350MY the week it arrived.
| Capacity | Inch | Metric |
|---|---|---|
| Turning diameter | Ø15 in | 380 mm |
| Turning length | 59 in | 1,500 mm |
| Bar diameter | Ø1.65 in | 42 mm |
| Bar-fed turning length | 7.87 in | 200 mm |
| Features | Live tooling, Y-axis, multi-function turning | |
CNC milling
3, 4 and 5-axis machining for complex geometry on Haas vertical machining centers, from prototype development through small production runs.
| Capacity | Inch | Metric |
|---|---|---|
| X travel | 64 in | 1,626 mm |
| Y travel | 32 in | 813 mm |
| Z travel | 30 in | 762 mm |
| Table load | 4,000 lb | 1,814 kg |
Grinding and honing
Internal and external diameters, flat surfaces and precision bores. If you have a specific finish or tolerance, send the drawing and we'll review the application, workholding and process.
| Process | Machine | Capacity |
|---|---|---|
| ID grinding | Bryant | Ø10 × 6 in long |
| OD grinding | Okamoto | Ø12 × 36 in long |
| Surface grinding | 6 × 18 in | |
| Wet surface grinding | Okamoto | 16 × 32 in |
| Jig grinding | Moore G18 | Ø4 in |
| Honing | Sunnen | Ø2 in |
Materials
Aluminum, brass, bronze, copper, low and high-carbon steel, stainless, tool steel and plastics.
Working with something else? Ask. We'll tell you plainly if it's a fit.
Have a part in mind?
Send a drawing, material, quantity and the date you need it. Include critical dimensions, finish requirements and any outside processing so we can quote the complete job.
Listed capacities are equipment limits. Part geometry, workholding and process requirements determine whether a job fits.
